Containerized generator sets can be used as backup power for outdoor projects, industries, commercial buildings, etc.
Longen Power is committed to providing customers with satisfactory products. Recently, it completed remote testing of container generator sets in the factory.
1.Tested generator

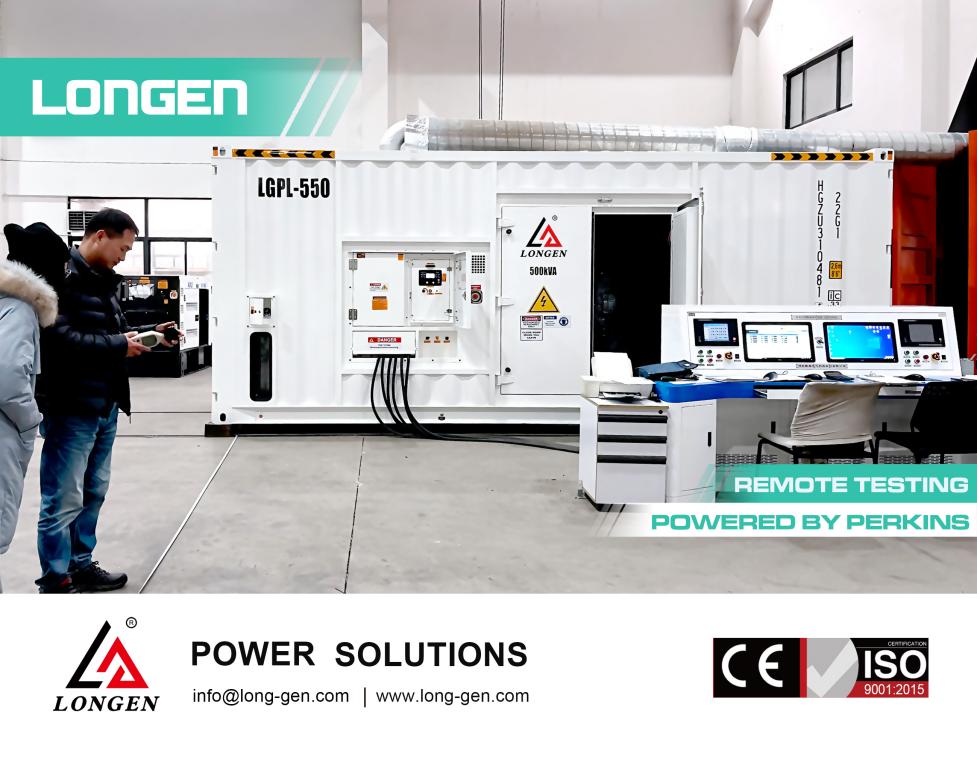

The generator set for remote testing is LGPL-550
◆Prime Power: 400KW/500KVA
◆Standby Power: 440KW/550KVA
◆Frequency: 50Hz
◆Voltage: 230/400V
◆Phase: 3 Phase
◆Engine Brand: Perkins
◆Alternator Brand: Leroy Somer
2.Special design
◆20HQ container generator set with built-in silencer
◆Built in independent fuel tank.
◆Equipped with remote start/stop function
◆Install smoke alarm, lighting, explosion-proof switch, emergency stop button.
◆Start mode: automatic start/stop
◆According to environmental requirements, the generator set adopts a dust-proof and sand proof design.
◆Salt resistant spray insulation of alternator
◆External three-way valve
◆High standard: All components comply with CE certification
3. Appearance inspection
The customer carefully evaluated the components of the 500KVA container generator set.
First, an overall inspection was conducted from the outside, including generator set shell quality, painting, door locks, controller doors, breakers, etc.
In addition, they also inspected the inside of the generators, including the engine, alternator, wiring arrangement, bolt quality, air filter, etc.
4.Load test
To determine the rated continuous power output of a generator set, the following reference site conditions are used during factory acceptance testing:
|
Sequence No. |
Load(%) |
Specified Reference Site Conditions |
Time |
|
1 |
25 |
Atmospheric pressure(kPa):100 Ambient temperature(℃):25 Relative humidity(%):45 |
0.5Hr |
|
2 |
50 |
0.5Hr |
|
|
3 |
75 |
0.5Hr |
|
|
4 |
100 |
1Hr |
|
|
5 |
110 |
0.5Hr |
The load test shows that everything is running normally, and the customer is satisfied with this.
5.Noise level test
In order to test the noise effect and reduce other noise interference, we moved the generator set for testing.

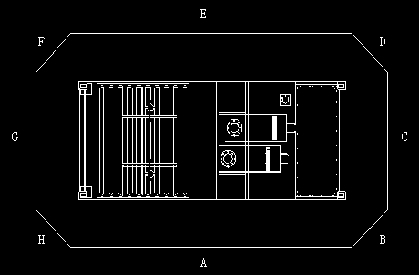

When the generator set is running at 100% load, Tester stands at corresponding positions A, B, C, D, E, F, G, H, etc.and use the noise decibel meter to detect the noise at 1 meter, 3 meters and 7 meters away from the generator set.
Noise test results meet customer requirements.
LONGEN POWER has long been committed to providing customers with satisfactory power solutions, designing and producing high-quality products based on customers' own needs, and gaining customer satisfaction and praise.
